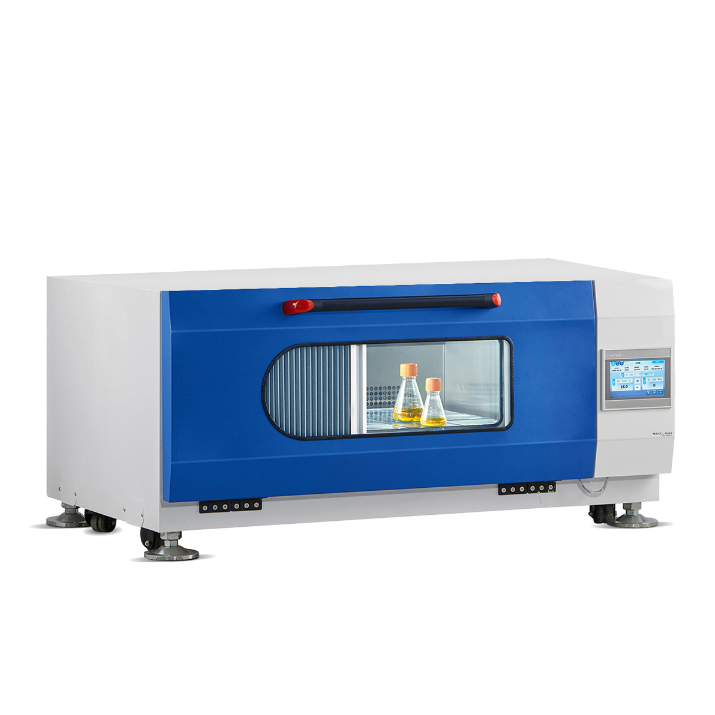

CS315 UV Sterilization Stackable CO2 Incubator Shaker

CS315 is suitable for all types of cell culture, including CHO, hybridoma, mammalian cells, insect cells, etc. lt is the most complete culture device for biological culture before entering fermenter culture. CS315 features unique bearing technology for stable start-up and virtually noiseless operation, even with multiple layers stacked without abnormal vibration. The unique air circulation system ensures a high degree of temperature field uniformity. lt can be stacked up to 2 or 3 layers for more space-saving laboratory use.

    Send Inquiry
    Product Detail
    Product Tags

    Product Features

    *7 inch LCD touch operation screen, simple and intuitive to operate

    *Active humidity control function (optional)

    *Built-in blackout curtain can be pushed and pulled easily to avoid light cultivation

    *Intelligent remote control function (optional)

    *Double glass doors for excellent insulation and safety

    *Door heating function prevents fogging of the glass door

    * Multi-UV sterilization system for better sterilization effect

    * Environmentally friendly, odor-free sticky pad material

    *All stainless steel rounded corners of the integrated cavity

    *Machine operation is nearly silent, multi-layer stacked high-speed operation without abnormal vibration
    *Heatless waterproof fan ensures uniformity of temperature
    *Push-pull aluminum tray for easy placement of culture containers

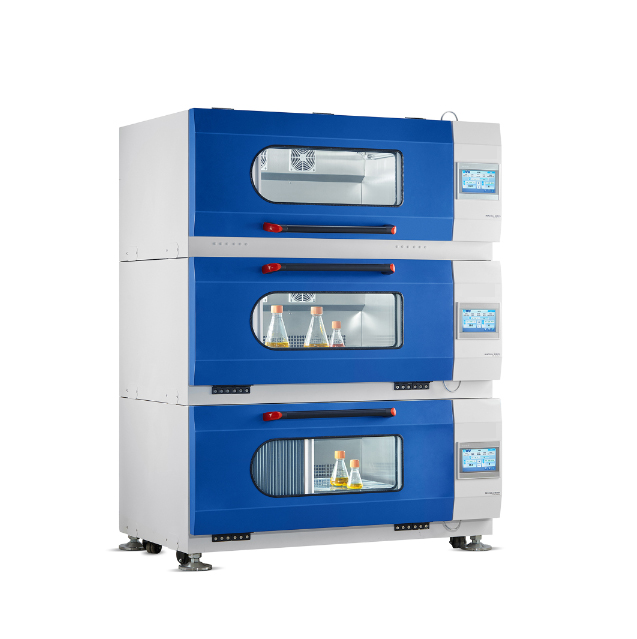

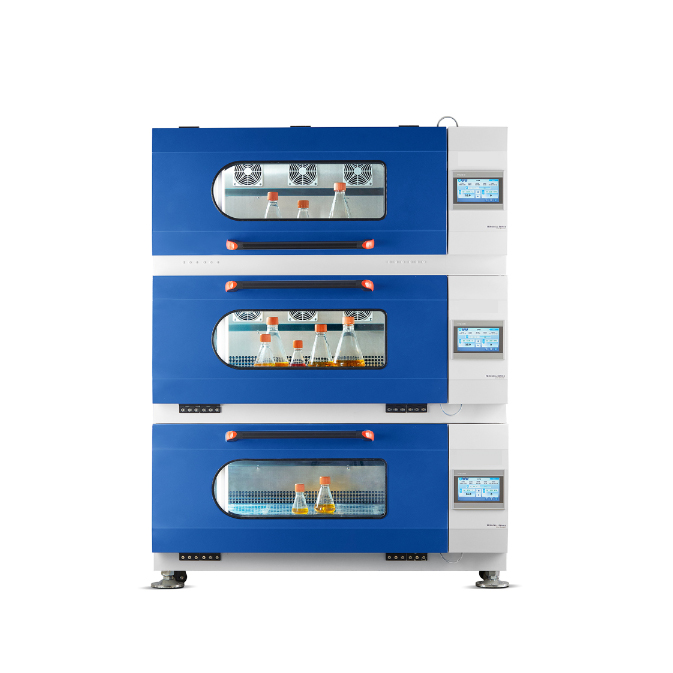

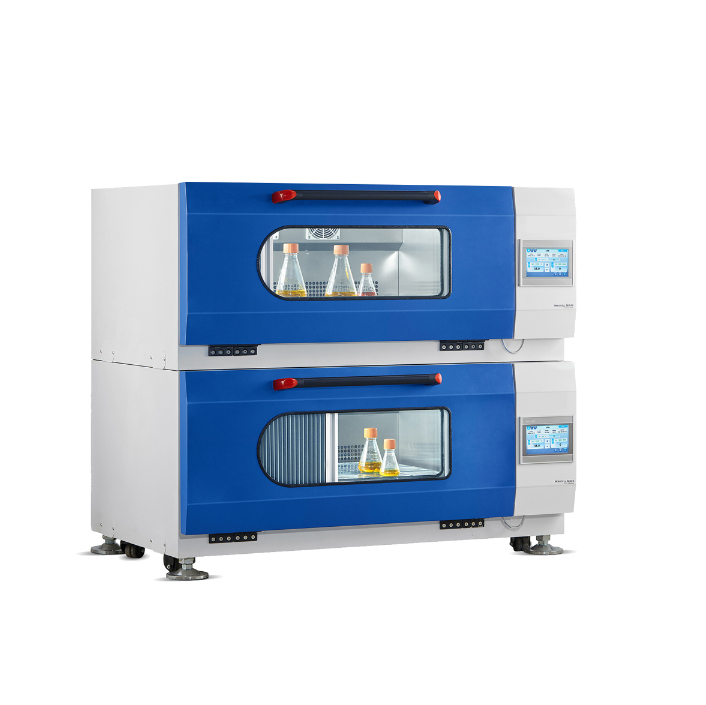

    *Flexible placement, stackable, effective in saving lab space
    *Multi-safety design for user and sample safety

    Technical Detail

    Cat.No. CS315 Dimension (WxDxH)

    1330x820x620mm(1 unit);

    1330x820x1170mm(2 units)

    1330x820x1720mm(3 units)
    Control interface 7 inch LCD touch operation screen Internal dimension (WxDxH) 1050x730x475mm
    Rotation speed 2~300 rpm depending on load and stacking Volume 315L
    Speed control accuracy 1rpm Illumination Fl tube.30w
    Shaking throw 50mm (Customization is available) Principle of CO2 sensor Infrared (lR)
    Shaking motion Orbital CO2 control range 0-20%
    Temperature control mode PID control mode CO2 display resolution 0.1%
    Temperature control range 4-60°C CO2 supply 0.05-0.1MPa is recommended
    Temperature display resolution 0.1°C Sterilization method UV sterilization
    Temperature distribution ±0.3℃ at 37°C Number of settable programs 5
    Principle of temp.sensor Pt-100 Number of stages per program 30
    Power consumption max. 1300W Data export interface USB interface
    Timer 0~999h Historical data storage 800,000 messages
    Tray size 520x880mm User management 3 levels of user management: Administrator/Tester/Operator
    Maximum working height 340mm (one unit) Ambient temperature 5~35°C
    Loading max. 50kg Power supply 115/230V+10%, 50/60Hz
    Tray capacity of shake flask 60x250ml or 40x500ml or 24x1000ml or 15x2000ml or 15x3000ml or 8x5000ml(standard with sticky pad) Weight 220kg per unit
    Material incubation chamber Stainless steel
    Material outer chamber Painted steel
    Maximum expansion Stackable up to 3 units Optional item Sliding black window; Remote monitoring
