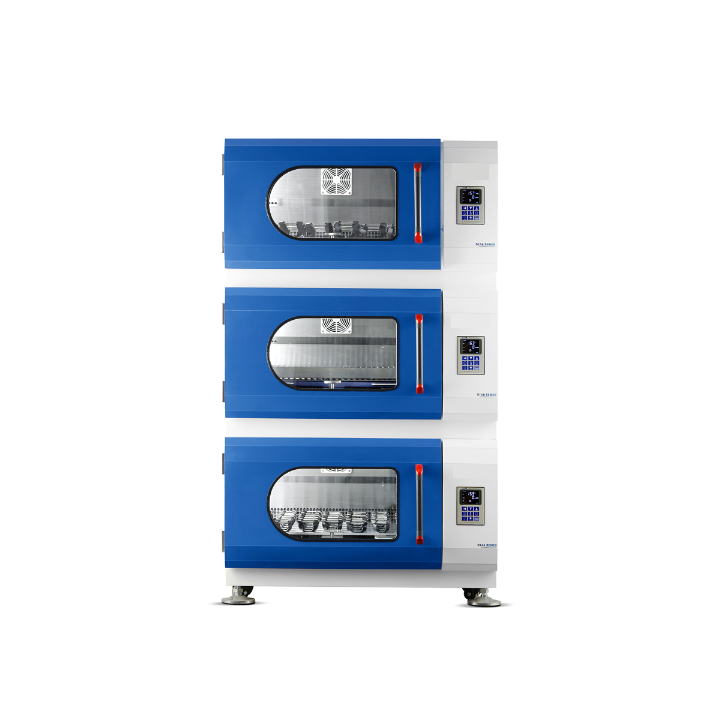

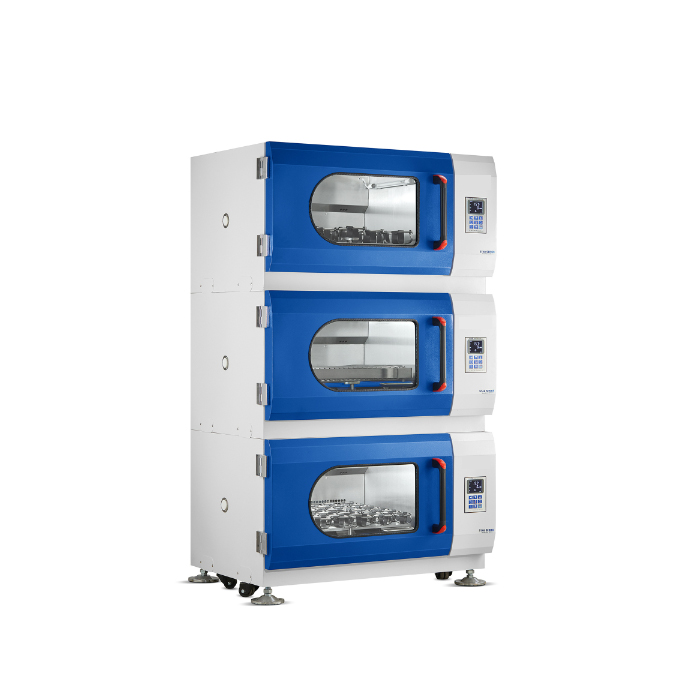

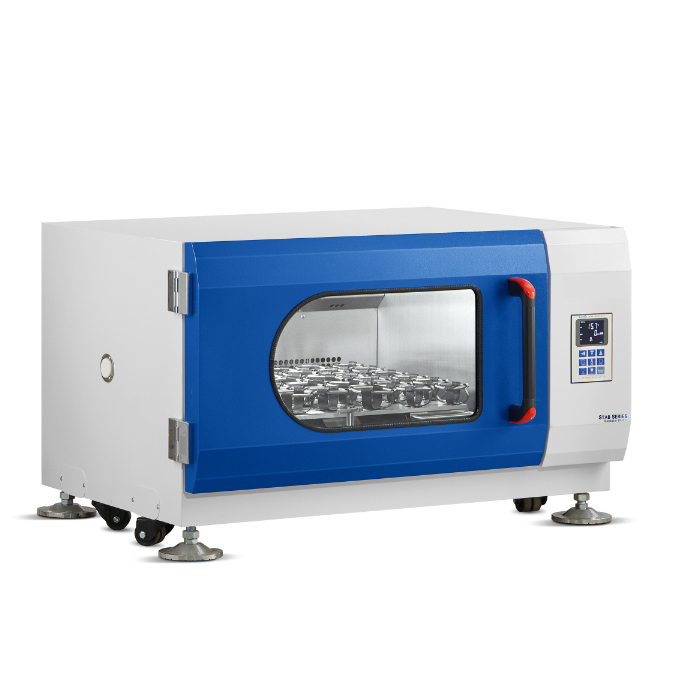

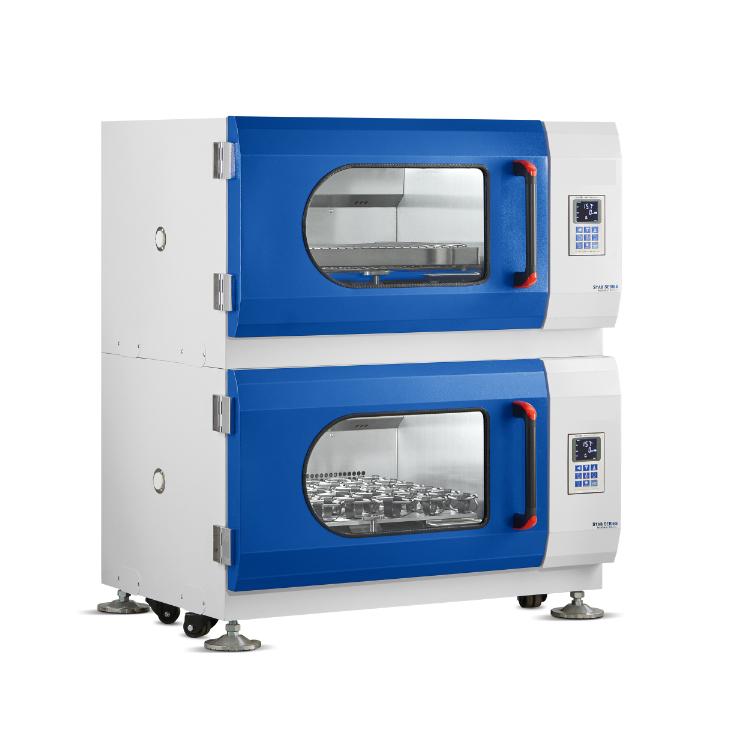

MS160 Stackable Incubator Shaker
Product Features
* Simple LCD button control interface, easy to operate and high stability
*Double-layer glass door to ensure excellent heat insulation and safety
*Brushed stainless steel rounded corners of the integrated cavity.beautiful and easy to clean
*Nearly silent machine operation, multi-layer stacking without movement
*One-piece molding clamps, stable and durable, effectively prevent unsafe events brought about by clamp breakage
*No heat waterproof fan, significantly reduce background heat,save energy

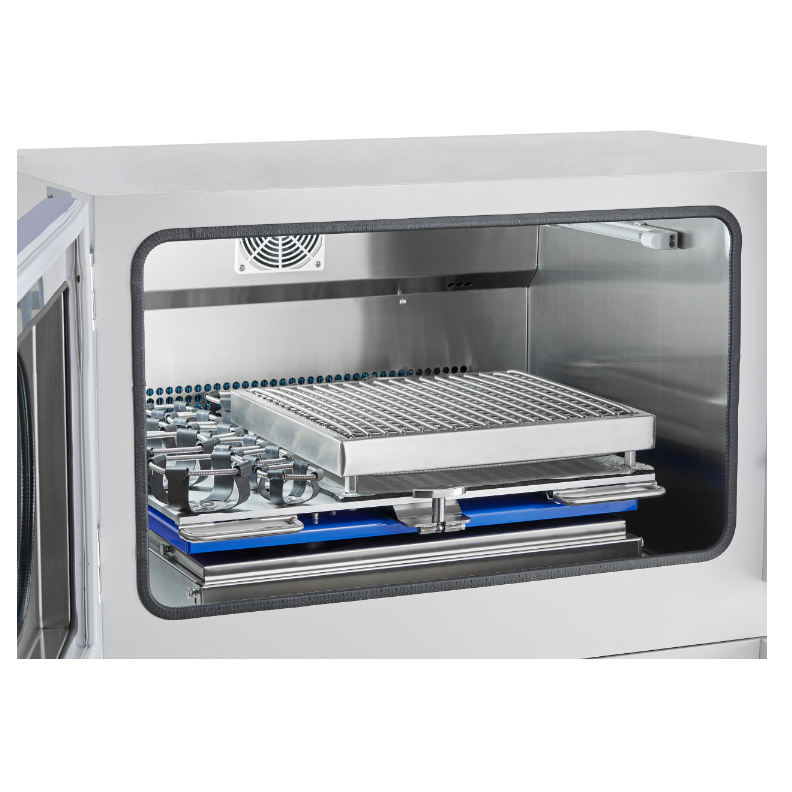

*Push-pull 8mm thick aluminum alloy tray never deformed, easy to place the culture flasks
* Waterproof design of the inner cavity of the incubator, easy to clean dirt
Technical Detail
| Cat. No | MS160 | Tray capacity of shake flask |
35x250ml or 24x500ml 15x1000ml or 8x2000ml |
| Control interface | LCD button control interface | ||
| Rotation speed | 2~300rpm | Dimension (W x D x H) |
L1000xW725 xH650mm(one unit) L1000xW725xH1200mm(two units) L1000xW725xH1750mm(three units) |
| Speed control accuracy | 1rpm | ||
| Shking throw | 26mm(Customization is available) | Internal usable height | 340mm |
| Temperature control mode | PlD control mode | Volume | 160L |
| Temperature control range | 4℃ ~60℃ | lllumination | Fl tube,30W |
| Temperature display resolution | 0.1℃ | Sterilization method | UV sterilization |
| Temperature fluctuation | ±0.1℃ | Clamp type | Universal spring mesh, flask clamps, deep-well plate clamps, test tube holders, etc. are available |
| Temperature field uniformity | ±0.5°C | Working environment temperature | 5℃~35℃ |
| Heating power | 1300W | Power supply | 220~240V/50~60Hz |
| Timing function | 0-999.9hours | Weight | 145kg per unit |
| Tray size | 590x465 mm | ||
| Maximum load | 35 kg | ||
