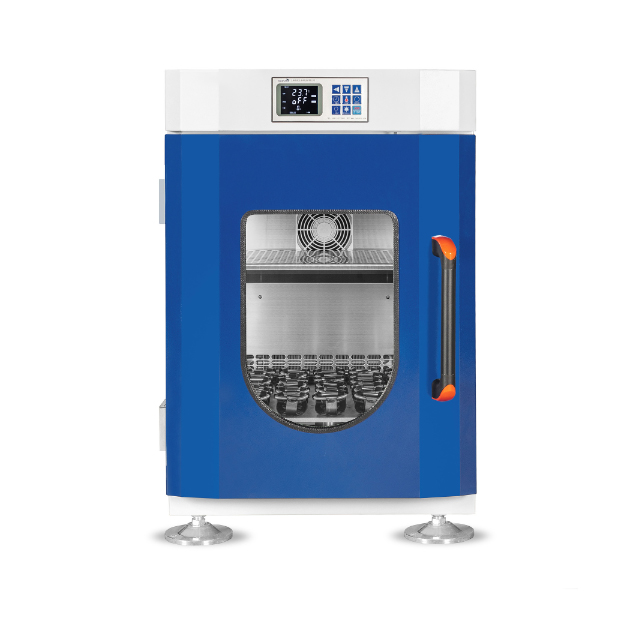

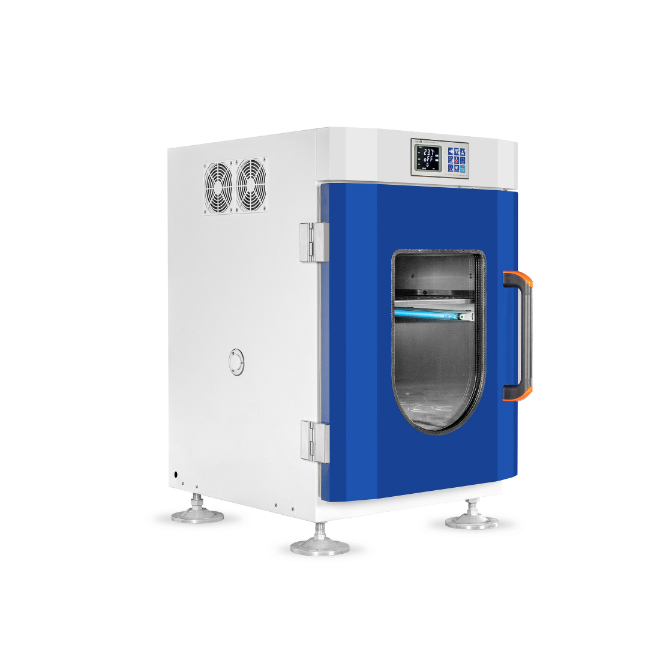

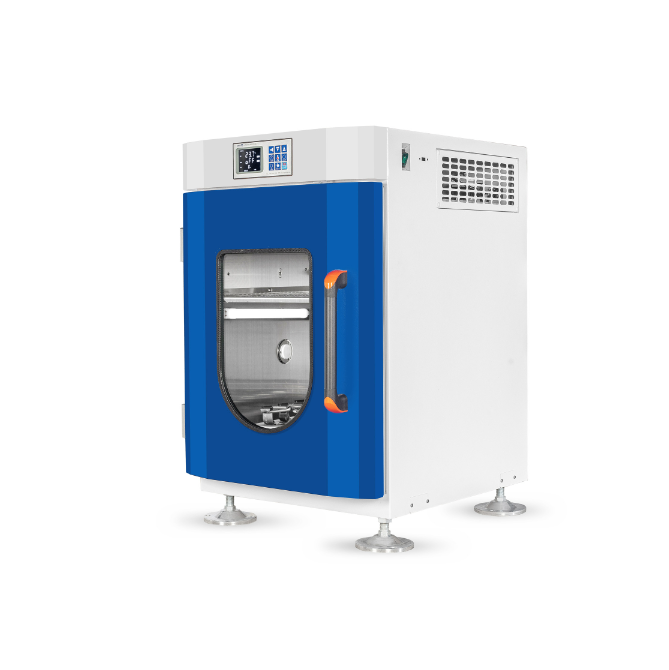

MS70 UV Sterilization Stackable Incubator Shaker

MS70 stackable incubator shaker miniature design makes full use of the limited space in the laboratory, and can be placed under the laboratory table or on the laboratory table top, while maintaining a compact size equipped with a refrigeration system, providing a highly scalable temperature control range for culture and reaction, which can meet the needs of small amounts of culture.

Send Inquiry

Product Detail

Product Tags

Product Features

*Compact size and effective use of space, equipped with refrigeration system to effectively expand the culture temperature range

*Double-layer glass door to ensure excellent heat insulation and safety

*Brushed stainless steel rounded comers of the integrated cavity, beautiful and easy to clean

*Under-table height design, the incubator can be placed under the laboratory table, effective use of laboratory space

*Nearly silent machine operation, double-layer stacking without movement

*One-piece molding clamps, stable and durable, effectively prevent unsafe events brought about by clamp breakage

* No heat waterproof fan, significantly reduce background heat, save energy

* Waterproof design of the inner cavity of the incubator, easy to clean dir

Technical Detail

Cat.No.	MS70	Loading max.	15kg
Control interface	Push-button LED display	Tray capacity of shake flask	16x250ml or 11x500ml or 7x1000ml or 5x2000ml (standard with Interwoven springs, Various other holders areavailable)
Rotation speed	2~300rpm depending on load and stacking	Tray capacity of shake flask

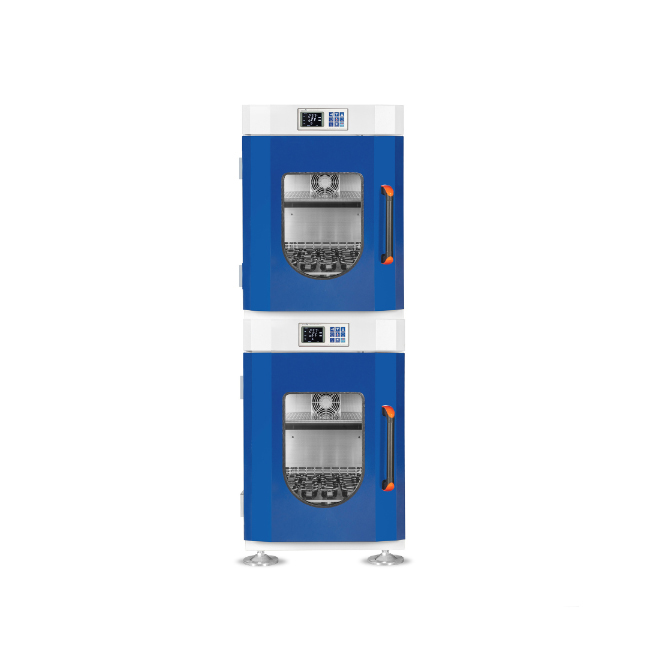

Speed control accuracy	1rpm	Maximum expansion	Stackable up to 2 units
Shaking throw	26mm (Customization is available)	Dimension (WxDxH)	550x653x850mm(1 unit); 550x653x1660mm(2 units)
Shaking motion	Orbital	Dimension (WxDxH)	550x653x850mm(1 unit); 550x653x1660mm(2 units)
Temperature control mode	PID control mode	Internal dimension (WxDxH)	460x562x495mm
Temperature control range	4~60°C	Volume	70L
Temperature display resolution	0.1°C	Sterilization method	UV sterilization
Temperature distribution	±0.5°C at 37°C	Ambient temperature	5~35°C
Principle of temp. sensor	Pt-100	Power supply	115/230V+10%,50/60Hz
Power consumption max.	1000W	Weight	113kg per unit
Timer	0~999h	Material incubation chamber	Stainless steel
Tray size	370x400mm	Material outer chamber	Painted steel
Maximum working height	400mm (one unit)	Optional item	Sliding black window
