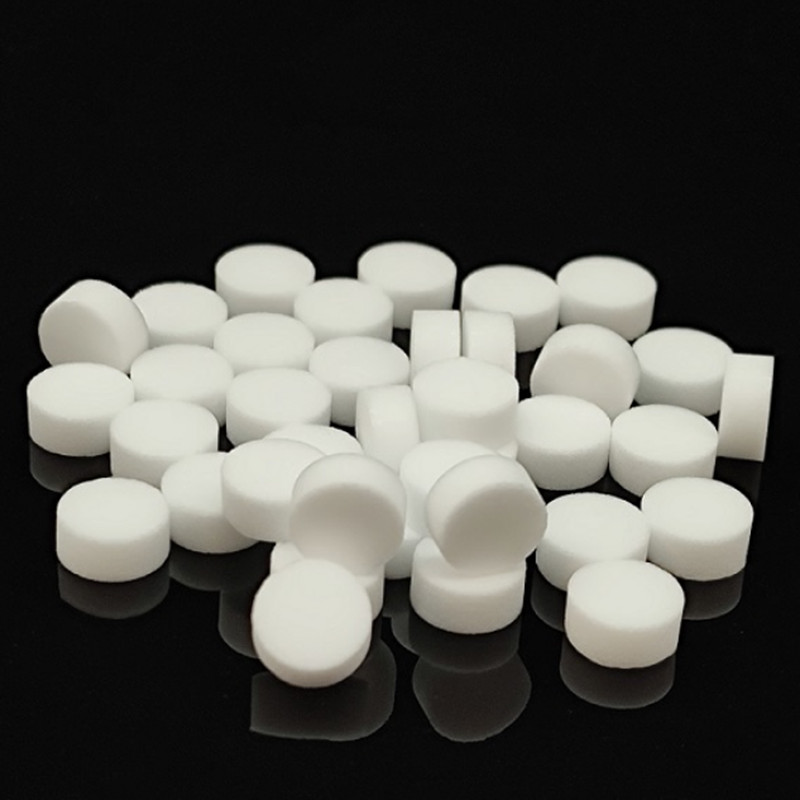

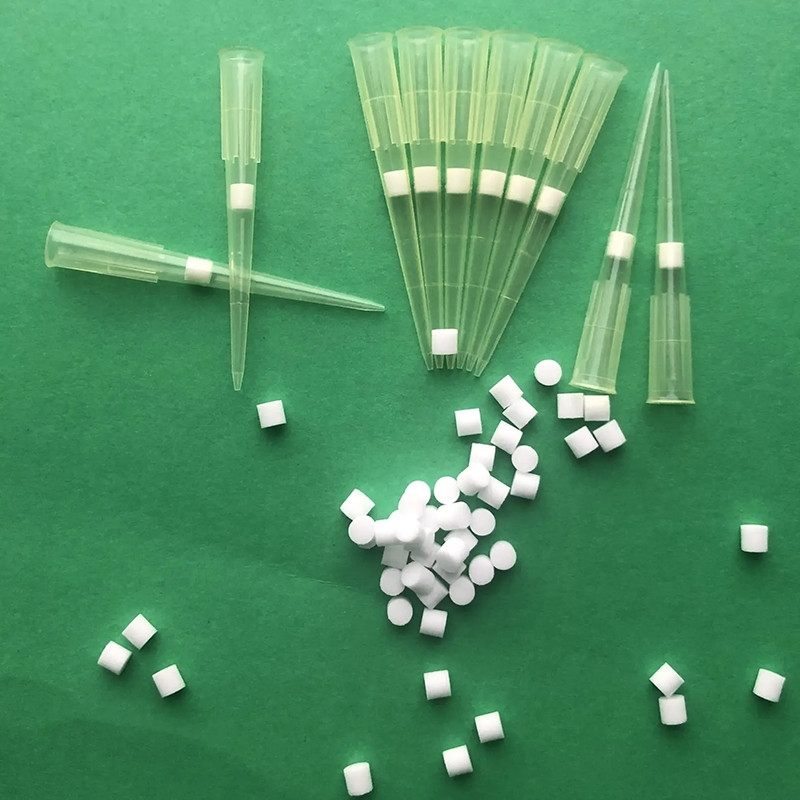

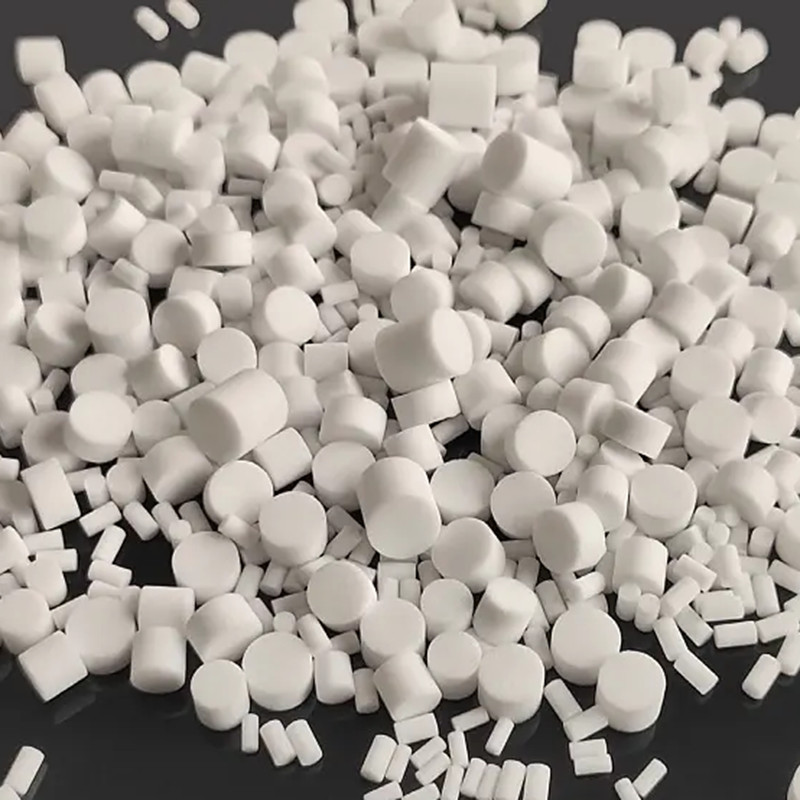

Filter cartridges for pipette tips 10ul-1250ul

B&M® pipette tip filter cartridges are made of ultra-high molecular weight polyethylene, which is hydrophobic, compact, durable, lightweight, can withstand high filtration pressure, non-toxic, odorless, has good corrosion resistance to acids and alkaline solvents, blocks aerosols, preventing liquids and liquid vapors from contaminating the inside of the pipette gun.

Send Inquiry

Product Detail

Product Tags

Material properties of UHMW-PE

Ultra High Molecular Weight Polyethylene (UHMW-PE) is a polyethylene with a molecular weight of more than 1.5 million and is a thermoplastic engineering plastic with excellent comprehensive performance.

UHMW-PE has excellent impact resistance, wear resistance, low temperature resistance and self-lubricating properties, and has the following excellent characteristics:

● Excellent chemical resistance: In addition to strong oxidizing acids, it can withstand a variety of corrosive environments (acids, alkalis, salts) and organic environments (except naphthalene solvents) within a certain temperature and concentration range.

● Hygienic and non-toxic: physiologically inert and physiologically adaptable, meet the standards of the International Health Association, can be used in contact with food and medicine, and functional parts can be implanted in the human body.

● Excellent Hydrophobicity: UHMW-PE has a very low water absorption rate of less than 0.01%, only 1% of Nylon 66, which is one of the lowest water absorption rates among engineering plastics.

Ultra High Molecular Weight Polyethylene Particle Size Selection

The particles of UHMW-PE material are not standard spherical, the more uniform the particle size of the material, the closer it is to spherical, the better the uniformity and the higher the quality of the sintered cartridge. BM Life Sciences has set strict standards for the selection of raw materials, and sintered cartridges are made of materials with uniform particle size, and for special requirements, we use materials with uniform particle size that are not spherical to ensure the high quality of sintered cartridges.

UHMWPE Cleanliness Control

BM Life Sciences offers two types of raw materials: 1) pure raw materials that meet the medical standard; 2) ultra-pure raw materials, which are purified by distillation of various organic solvents and used for highly sensitive chromatographic analysis.

Quality Assurance

B&M® filter cartridges/screens are made of pure ultra-high molecular weight polyethylene (UHMW-PE) and polypropylene (PP) sintered to suit different application scenarios, or polyester fiber, polypropylene fiber, PTFE, or a combination of two or more materials for special applications.

BM Life Science Laboratory conducts testing and research in the field of life sciences, chemical analysis, materials science, etc.

Order Details

Product Number	Model Number	norm	Packing (/bag)
PEFPT015-35-005	10ul	Hydrophobic Sieve Plate, Φ1.5±0.05mm, Thickness: 3.5±0.15mm, Pore Size: 5±3um	10000 pcs/bag
PEFPT016-35-005	10ul	Hydrophobic Sieve Plate, Φ1.6±0.05mm, Thickness: 3.5±0.15mm, Pore Size: 5±3um	10000 pcs/bag
PEFPT018-35-005	10ul	Hydrophobic Sieve Plate, Φ1.8±0.05mm, Thickness: 3.5±0.15mm, Pore Size: 5±3um	10000 pcs/bag
PEFPT022-35-005	20ul	Hydrophobic Sieve Plate, Φ2.2±0.05mm, Thickness: 3.5±0.15mm, Pore Size: 5±3um	10000 pcs/bag
PEFPT025-35-005	50ul	Hydrophobic Sieve Plate, Φ2.5±0.05mm, Thickness: 2.2±0.15mm, Pore Size: 5±3um	10000 pcs/bag
PEFPT036-35-010	100ul	Hydrophobic Sieve Plate, Φ3.6±0.05mm, Thickness: 3.5±0.15mm, Pore Size: 10±3um	10000 pcs/bag
PEFPT038-35-010	100ul	Hydrophobic Sieve Plate, Φ3.8±0.05mm, Thickness: 3.5±0.15mm, Pore Size: 10±3um	10000 pcs/bag
PEFPT045-35-010	200ul	Hydrophobic Sieve Plate, Φ4.5±0.05mm, Thickness: 3.5±0.15mm, Pore Size: 10±5um	10000 pcs/bag
PEFPT047-35-010	200ul	Hydrophobic Sieve Plate, Φ4.7±0.05mm, Thickness: 3.5±0.15mm, Pore Size: 10±5um	10000 pcs/bag
PEFPT060-40-010	1000ul	Hydrophobic Sieve Plate, Φ6±0.05mm, Thickness: 4±0.15mm, Pore Size: 10±5um	10000 pcs/bag
PEFPT067-50-010	1000ul	Hydrophobic Sieve Plate, Φ6.7±0.05mm, Thickness: 5±0.2mm, Pore Size: 10±5um	10000 pcs/bag
PEFPT069-50-010	1250ul	Hydrophobic Sieve Plate, Φ6.9±0.05mm, Thickness: 5±0.2mm, Pore Size: 10±5um	10000 pcs/bag
PEFPT070-35-010	1250ul	Hydrophobic Sieve Plate, Φ7±0.05mm, Thickness: 3.5±0.15mm, Pore Size: 10±5um	10000 pcs/bag
PEFPT071-22-010	1250ul	Hydrophobic Sieve Plate, Φ7.1±0.05mm, Thickness: 2.2±0.1mm, Pore Size: 10±5um	10000 pcs/bag
PEFPT071-35-010	1250ul	Hydrophobic Sieve Plate, Φ7.1±0.05mm, Thickness: 3.5±0.15mm, Aperture: 10±5um	10000 pcs/bag
Personalization	Personalization	Personalization	10000 pcs/bag
