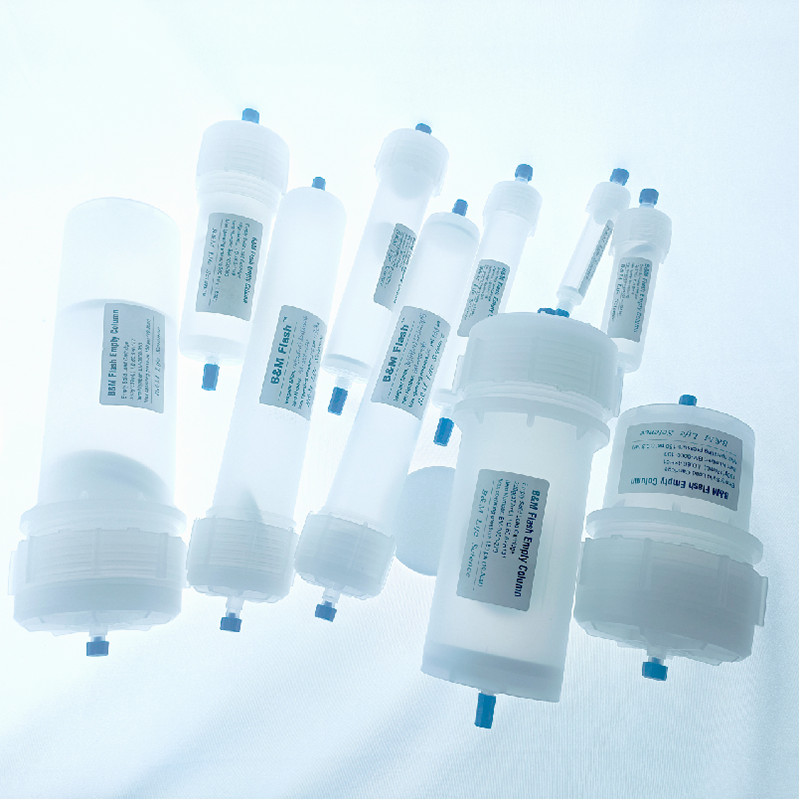

Flash Blank Columns Fast Liquid Chromatography Columns

B&M® Flash Column Series: Flash is a fast separation mode for preparative chromatography, using optimized medium and low pressure prepackaged columns for chromatographic separation; used to purify organic compounds, it is a fast and inexpensive method compared to traditional column chromatography; Widely used in drug discovery and development, sample and natural product purification, and other applications.
Our company independently developed 4G-1600G a complete set of shape specifications, including tube columns, cap, standard top and bottom cover luer connector and 2 pieces of sieve plate, the tube column material is medical grade polypropylene injection molding; independent development, cost-effective, stable supply, quality assurance; Welcome customers to consult and discuss cooperation!

Send Inquiry

Product Detail

Product Tags

Product Features

▶ Standard Luer-Lok inlet and outlet ports, compatible with a variety of fast liquid preparative chromatography systems up to 200 psi;

▶ PP column, overall column tube transparency, corrosion resistance, excellent performance, easy and fast manual assembly, support tandem use;

▶ The pre-packaged column for quick separation can be used directly;

▶ Empty column sampling can be used as solid up sampling, greatly improve the separation performance;

▶ 4G-330g 10 popular sizes available;

▶ The o-ring can be selected from the Viton ring for better corrosion resistance.

Frequently Used B&M® Flash Column Accessories:

Flash Пустые колонки Колонки для быстрой жидкостной хроматографии059vm

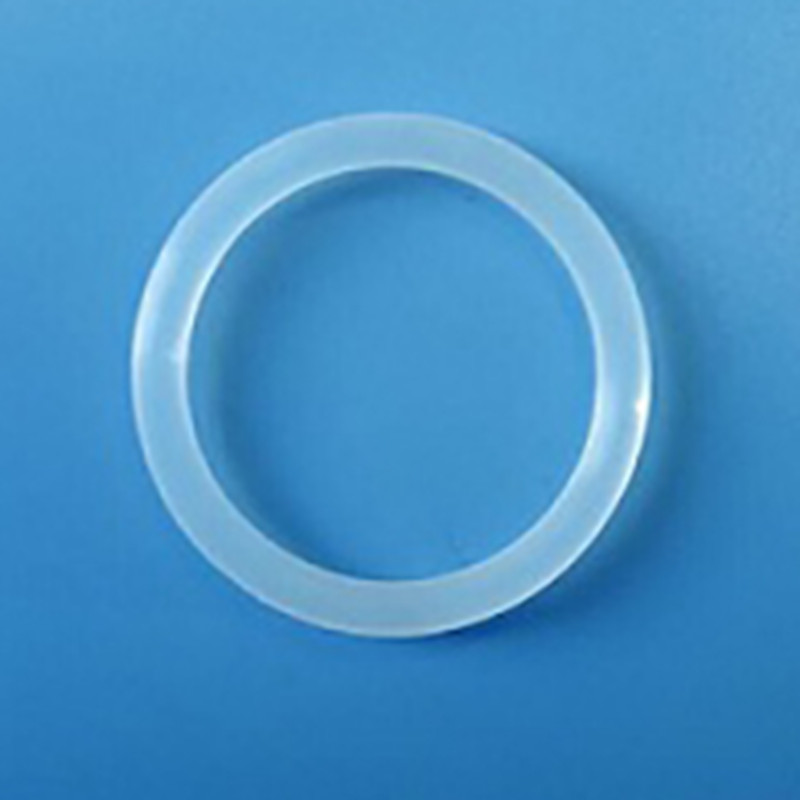

Silicone rubber seals

Flash Пустые колонки Колонки для быстрой жидкостной хроматографии064tc

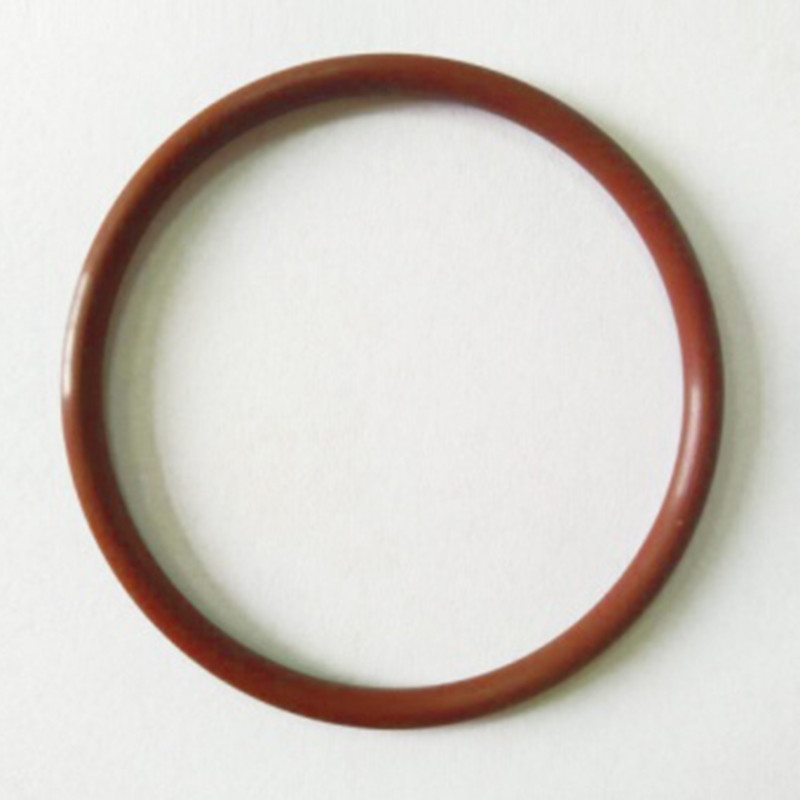

Fluoroelastomer seals

Flash Пустые колонки Колонки для быстрой жидкостной хроматографии07ka7

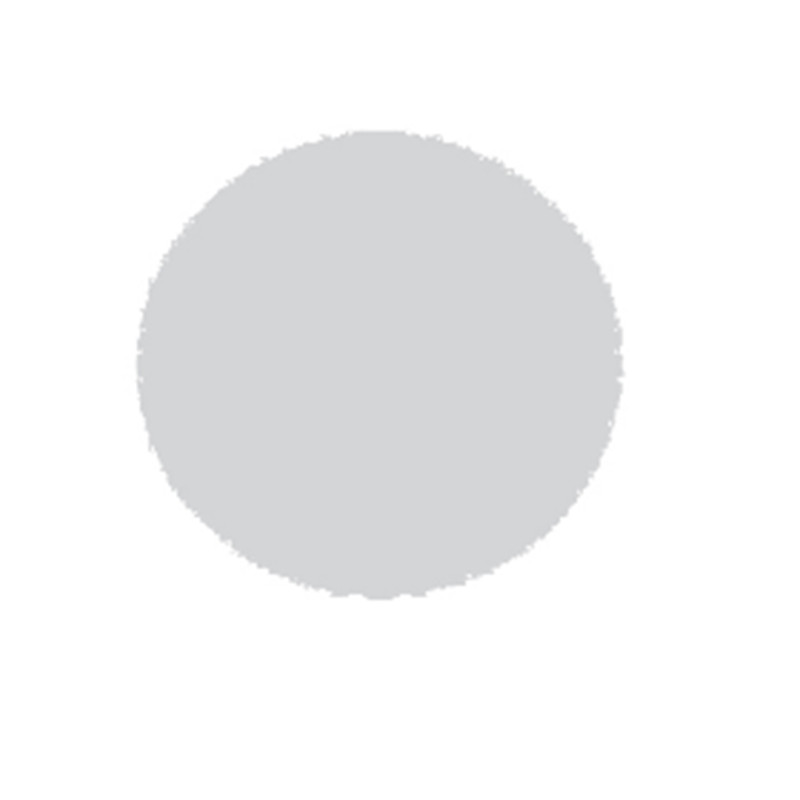

Filter Disc

Flash Пустые колонки Колонки для быстрой жидкостной хроматографии08hpq

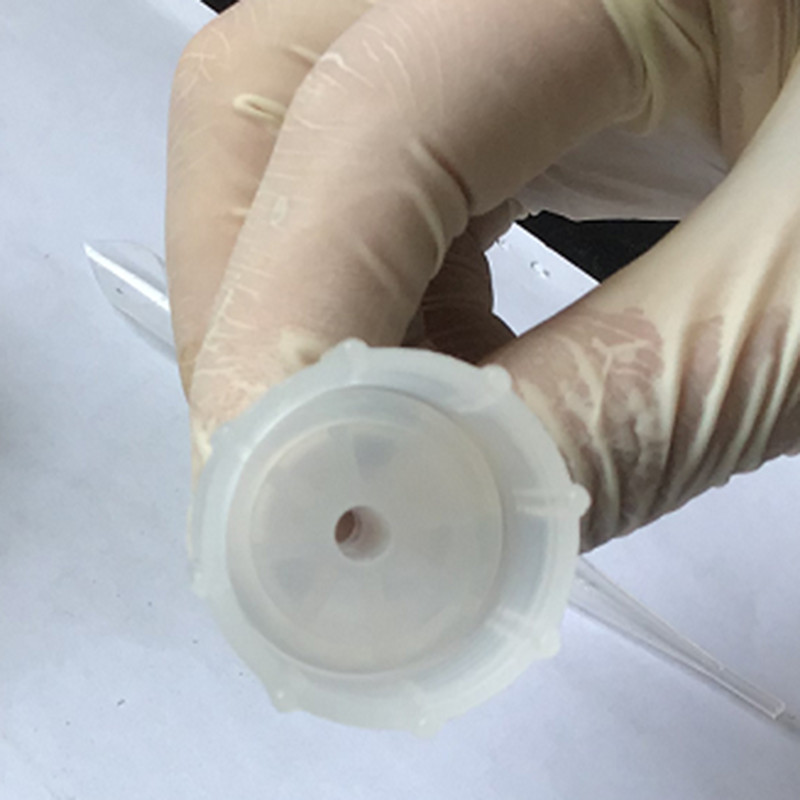

Screw Cap

Flash Пустые колонки Колонки для быстрой жидкостной хроматографии09u6v

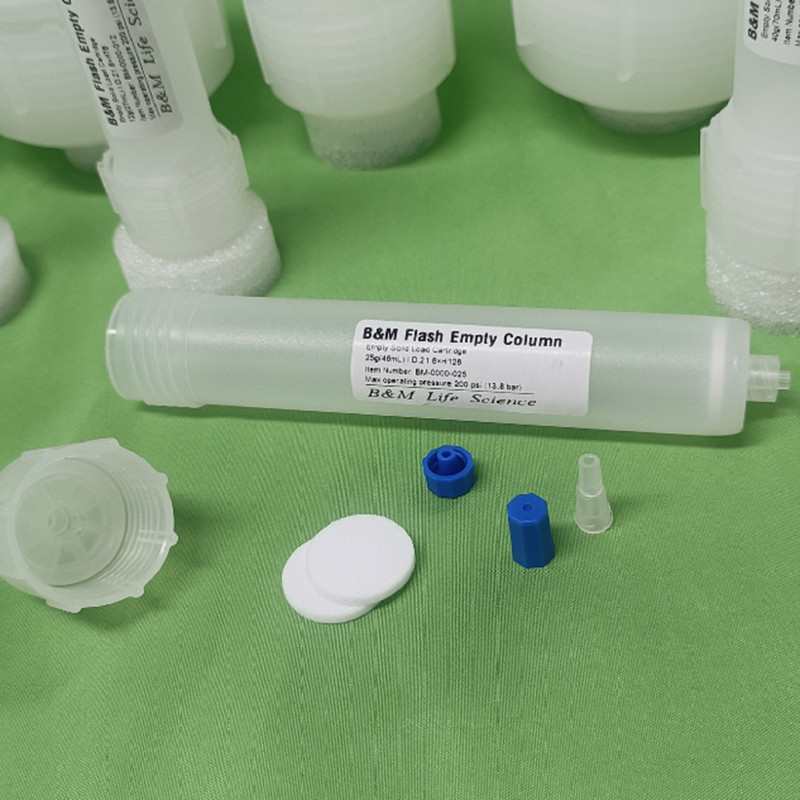

Empty column

Flash Пустые колонки Колонки для быстрой жидкостной хроматографии04pya

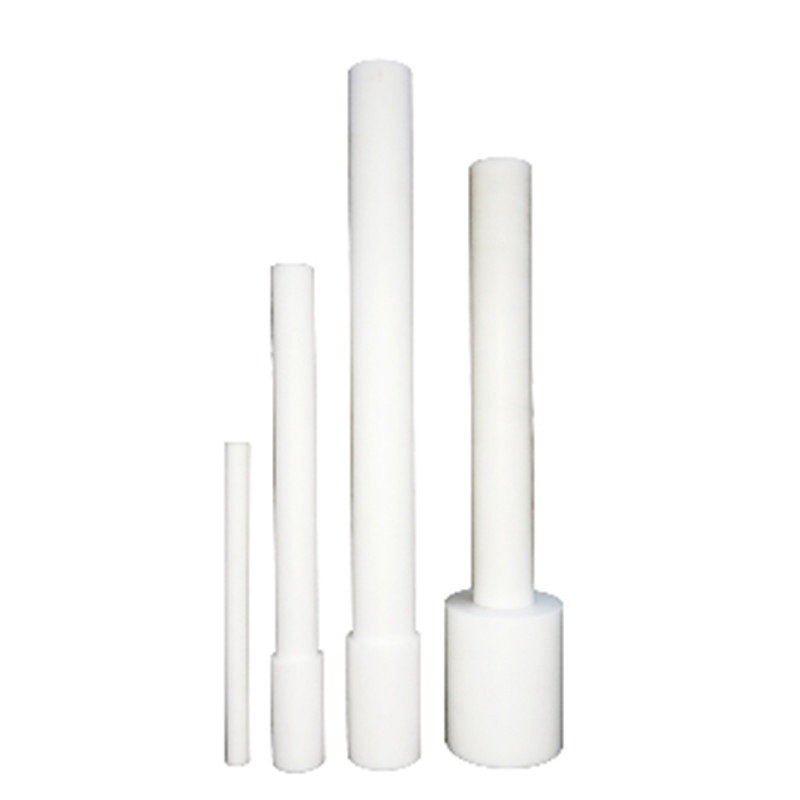

Tools for Mounting Columns

Order Details

Product Number	norm	Overall parameters	Pressure Resistance Parameter	Packing (/case)
BM-0000-004	Empty column + top and bottom filters + O-ring, 4 g	8ml，Φ12.8*H60	200psi(13.8bar)	120
BM-0000-012	Empty column + top and bottom filters + O-ring, 12 g	27ml，Φ21.8*H76	200psi(13.8bar)	108
BM-0000-025	Empty column + top and bottom filters + O-ring, 25 g	46ml，Φ21.6*H126	200psi(13.8bar)	80
BM-0000-040	Empty column + top and bottom filters + O-ring, 40 g	70ml，Φ26.8*H125	200psi(13.8bar)	48
BM-0000-060	Empty column + top and bottom filters + O-ring, 60 g	104ml，Φ36.6*H99	200psi(13.8bar)	24
BM-0000-080	Empty column + top and bottom filters + O-ring, 80 g	147ml，Φ31.2*H193	200psi(13.8bar)	20
BM-0000-100	Empty column + top and bottom filters + O-ring, 100 g	176ml，Φ60.4*H61	150psi(10.3bar)	12
BM-0000-120	Empty column + top and bottom filters + O-ring, 120 g	215ml，Φ36.6*H204	200psi(13.8bar)	16
BM-0000-220	Empty column + top and bottom filters + O-ring, 220 g	377ml，Φ60.6*H131	150psi(10.3bar)	8
BM-0000-330	Empty column + top and bottom filters + O-ring, 330 g	539ml，Φ60.6*H187	150psi(10.3bar)	5
BM-0000-0800	Empty column + top and bottom filters + O-ring, 800 g	ml，Φ78.2H382.9	100psi(6.9bar)	1
BM-0000-1600	Empty column + top and bottom filters + O-ring, 1600 g	ml，Φ103.8H432.4	100psi(6.9bar)	1

※ Compatible with all fast liquid preparative chromatography systems on the market, such as ISCO, Biotage, Yamazen, etc.
