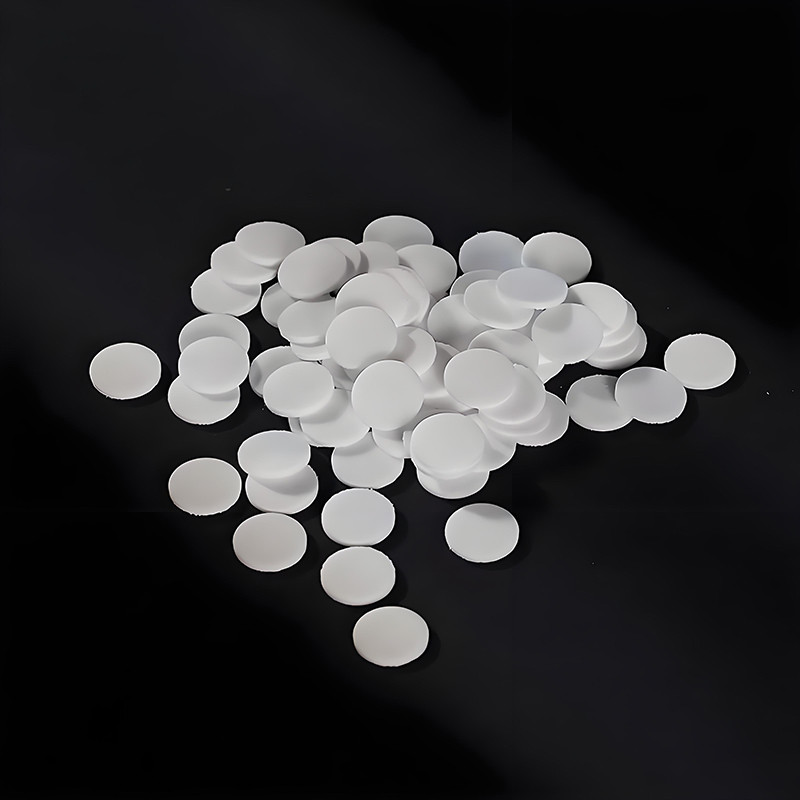

SPE Column with Hydrophobic Frits

Frits are an essential component of columns for solid-phase extraction, holding the packing material in place and controlling the flow rate.
B&M® SPE frits are professionally optimized to control flow rate, purity, stability and solvent compatibility. We currently offer porous plastics, porous composites, functionalized porous media (e.g., laboratory cartridges, frits, medical cartridges, industrial cartridges, water filtration cartridges, etc.). Development and production of bioactive porous media and other high-performance porous materials. As well as the use of self-developed high-standard equipment combined with professional technology to provide cost-effective OEM services for solid phase extraction (SPE columns).

Send Inquiry

Product Detail

Product Tags

Material properties of UHMW-PE

Ultra-high molecular weight polyethylene (UHMW-PE) is a polyethylene with a molecular weight of more than 1.5 million and is a thermoplastic engineering plastic with excellent comprehensive performance.

UHMW-PE has excellent impact resistance, wear resistance, low temperature resistance and self-lubricating properties, and has the following excellent performance:

● Excellent chemical resistance: In addition to strong oxidizing acids, it can withstand a variety of corrosive environments (acids, alkalis, salts) and organic environments (except naphthalene solvents) within a certain temperature and concentration range.

● Hygienic and non-toxic: physiologically inert and physiologically adaptable, meet the standards of the International Health Association, can be used in contact with food and medicine, and functional parts can be implanted in the human body.

● Excellent Hydrophobicity: UHMW-PE has a very low water absorption rate of less than 0.01%, only 1% of Nylon 66, which is one of the lowest water absorption rates among engineering plastics.

Ultra High Molecular Weight Polyethylene Particle Size Selection

The particles of UHMW-PE material are not standard spherical, the more uniform the particle size of the material, the closer it is to spherical, the better the uniformity and the higher the quality of the sintered cartridge. BM Life Sciences has set strict standards for the selection of raw materials, and sintered cartridges are made of materials with uniform particle size, and for special requirements, we use materials with uniform particle size that are not spherical to ensure the high quality of sintered cartridges.

UHMWPE Cleanliness Control

BM Life Sciences offers two types of raw materials: 1) pure raw materials that meet the medical standard; 2) ultra-pure raw materials, which are purified by distillation of various organic solvents and used for highly sensitive chromatographic analysis.

Quality Assurance

B&M® filter cartridges/screens are made of pure ultra-high molecular weight polyethylene (UHMW-PE) and polypropylene (PP) sintered to suit different application scenarios, or polyester fiber, polypropylene fiber, PTFE, or a combination of two or more materials for special applications.

BM Life Science Laboratory conducts testing and research in the field of life sciences, chemical analysis, materials science, etc.

Order Details

Product Number	Description	calibre	Thickness	Hole Diameter	Packing (/bag)
HF021-25-020	Frits For 550ul 96-well SPE Plates	2.1±0.05mm	2.5±0.15mm	20±10um	1000
HF025-16-020	Frits For 550ul 96-well SPE Plates	2.5±0.05mm	1.6±0.15mm	20±10um	1000
HF023-16-020	Ultra Micro SPE Centrifugal Columns Frits	2.3±0.05mm	1.6±0.15mm	20±10um	1000
HF023-25-020	Ultra Micro SPE Centrifugal Columns Frits	2.3±0.05mm	2.5±0.15mm	20±10um	1000
HF025-25-020	ABI3900 Synthetic column with bottom frit	2.5±0.05mm	2.5±0.15mm	20±10um	1000
HF051-16-020	Ultra Micro SPE Centrifugal Columns Frit	5.15±0.05mm	1.6±0.15mm	20±10um	1000
HF051-25-020	Ultra Micro SPE Centrifugal Columns Frit	5.15±0.05mm	2.5±0.15mm	20±10um	1000
HF074-16-020	Ultra Micro SPE Centrifugal Columns Frit	7.4±0.05mm	1.6±0.15mm	20±10um	1000
HF074-25-020	Ultra Micro SPE Centrifugal Columns Frit	7.4±0.05mm	2.5±0.15mm	20±10um	1000
HF058-16-020	1 ml SPE Empty Column Frits	5.8±0.05mm	1.6±0.15mm	20±10um	1000
HF058-25-020	1 ml SPE Empty Column Frits	5.8±0.05mm	2.5±0.15mm	20±10um	1000
HF060-16-020	3 ml 96 well frit	6.0±0.05mm	1.6±0.15mm	20±10um	1000
HF060-25-020	3 ml 96 well frit	6.0±0.05mm	2.5±0.15mm	20±10um	1000
HF066-16-020	600UL 96 Well frit	6.6±0.05mm	1.6±0.15mm	20±10um	1000
HF066-25-020	600UL 96 Well Frit	6.6±0.05mm	2.5±0.15mm	20±10um	1000
HF069-25-020	1 ml 96 well frit	6.9±0.05mm	2.5±0.15mm	20±10um	1000
HF070-16-020	1 ml 96 well frit	7.0±0.05mm	1.6±0.15mm	20±10um	1000
HPF072-10-05	1 ml SPE Empty Column frit	7.2±0.05mm	1.0±0.15mm	5±3um	1000
HPF078-10-05	1 ml SPE Empty Column frit	7.8±0.05mm	1.0±0.15mm	5±3um	1000
HF072-16-020	2ml 96 well frit	7.6±0.05mm	1.6±0.15mm	20±10um	1000
HF072-16-100	2ml 96 well frit	7.6±0.05mm	1.6±0.15mm	100±20um	1000
HF072-25-020	2ml 96 well frit	7.2±0.05mm	2.5±0.15mm	20±10um	1000
HF074-16-020	2ml 96 well frit	7.4±0.05mm	1.6±0.15mm	20±10um	1000
HF074-25-020	2ml 96 well frit	7.4±0.05mm	2.5±0.15mm	20±10um	1000
HF079-16-020	2ml 96 well frit	7.9±0.05mm	1.6±0.15mm	20±10um	1000
HF079-16-100	2ml 96 well frit	7.9±0.05mm	1.6±0.15mm	100±20um	1000
HF080-16-020	1ml SPE Empty Column frit	8.0±0.05mm	1.6±0.15mm	20±10um	1000
HF081-16-020	1.5ml 96 well frit	8.1±0.05mm	1.6±0.15mm	20±10um	1000
HF081-25-020	1.5ml 96 well frit	8.1±0.05mm	2.5±0.15mm	20±10um	1000
HF090-16-010	3 ml SPE Empty Column frit	9.0±0.05mm	1.6±0.15mm	10±5um	1000
HF090-16-020	3 ml SPE Empty Column Frit	9.0±0.05mm	1.6±0.15mm	20±10um	1000
HF090-25-020	3 ml SPE Empty Column Frit	9.0±0.05mm	2.5±0.15mm	20±10um	1000
HF091-16-010	3 ml SPE Empty Column Frit	9.1±0.05mm	1.6±0.15mm	10±5um	1000
HF091-16-020	3 ml SPE Empty Column Frit	9.1±0.05mm	1.6±0.15mm	20±10um	1000
HF091-25-020	3 ml SPE Empty Column Frit	9.1±0.05mm	2.5±0.15mm	20±10um	1000
HF110-16-020	SPE centrifuge column frit (15 ml)	11.0±0.05mm	1.6±0.15mm	10±5um	1000
HF110-16-050	SPE centrifuge column frit (15 ml)	11.0±0.05mm	1.6±0.15mm	20±10um	1000
HF110-25-020	SPE centrifuge column frit (15 ml)	11.0±0.05mm	2.5±0.15mm	20±10um	1000
HF110-25-050	SPE centrifuge column frit (15ml)	11.0±0.05mm	2.5±0.15mm	50±15um	1000
HF130-16-020	6 ml SPE Empty Column Frits	13.0±0.05mm	1.6±0.15mm	10±5um	1000
HF130-16-050	6 ml SPE Empty Column Frit	13.0±0.05mm	1.6±0.15mm	20±10um	1000
HF130-25-020	6 ml SPE Empty Column Frit	13.0±0.05mm	2.5±0.15mm	20±10um	1000
HF130-25-050	6 ml SPE Empty Column Frit	13.0±0.05mm	2.5±0.15mm	50±15um	1000
HF150-16-020	2.5ml 96 well Frit	15.0±0.05mm	1.6±0.15mm	10±5um	1000
HF150-16-050	2.5ml 96 well frit	15.0±0.05mm	1.6±0.15mm	20±10um	1000
HF150-25-020	2.5ml 96 well frit	15.0±0.05mm	2.5±0.15mm	20±10um	1000
HF150-25-050	2.5ml 96 well frit	15.0±0.05mm	2.5±0.15mm	50±15um	1000
HF158-16-020	12 ml SPE Empty Column Frit	15.8±0.05mm	1.6±0.15mm	10±5um	1000
HF158-16-050	12 ml SPE Empty Column Frit	15.8±0.05mm	1.6±0.15mm	20±10um	1000
HF158-25-020	12 ml SPE Empty Column Frit	15.8±0.05mm	2.5±0.15mm	20±10um	1000
HF158-25-050	12 ml SPE Empty Column Frit	15.8±0.05mm	2.5±0.15mm	50±15um	1000
HPF162-10-05	5ml SPE Empty Column Frit	16.2±0.05mm	10±0.15mm	5±3um	1000
HF169-16-020	5ml SPE Empty Column Frit	16.9±0.05mm	1.6±0.15mm	20±10um	1000
HPF171-10-05	5ml SPE Empty Column Frit	17.1±0.05mm	10±0.15mm	5±3um	1000
HF196-25-020	20ml SPE Empty Column Frit	19.6±0.05mm	2.5±0.15mm	20±10um	1000
HF196-25-050	20ml SPE Empty Column Frit	19.6±0.05mm	2.5±0.15mm	50±15um	1000
HF236-25-020	30ml SPE Empty Column Frit	23.6±0.05mm	2.5±0.15mm	20±10um	1000
HF236-25-050	30ml SPE Empty Column Frit	23.6±0.05mm	2.5±0.15mm	50±15um	1000
HF237-25-020	SPE centrifuge column frit (50 ml)	23.7±0.05mm	2.5±0.15mm	20±10um	1000
HF237-25-050	SPE centrifuge column frit (50 ml)	23.7±0.05mm	2.5±0.15mm	50±15um	1000
HF266-25-020	60ml SPE Empty Column Frit	26.6±0.05mm	2.5±0.15mm	20±10um	1000
HF266-25-050	60ml SPE Empty Column Frit	26.6±0.05mm	2.5±0.15mm	50±15um	1000
HF386-25-020	150ml SPE Empty Column Frit	38.6±0.05mm	2.5±0.15mm	20±10um	1000
HF386-25-050	150ml SPE Empty Column Frit	38.6±0.05mm	2.5±0.15mm	50±15um	1000
HF504-25-020	300ml SPE Empty Column Frit	50.4±0.05mm	2.5±0.15mm	20±10um	1000
HF504-25-050	300ml SPE Empty Column Frit	50.4±0.05mm	2.5±0.15mm	50±15um	1000
HF666-25-020	550ml SPE Empty Column Frit	66.6±0.05mm	2.5±0.15mm	20±10um	1000
HF666-25-050	550ml SPE Empty Column Frit	66.6±0.05mm	2.5±0.15mm	50±15um	1000
Personalization	Personalization				1000
