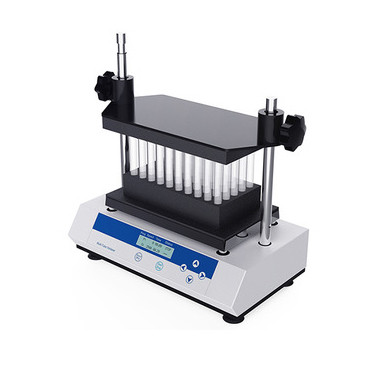

Multi-Pipe Vortexer
Product Description
The Multi-tube Vortex Mixer is a multi-tube vortex mixer developed by BM Life Science for sample pre-treatment. It can mix up to 50 samples at a time and can be equipped with a wide range of optional accessories to meet the vortex mixing needs of different tube sizes.
Product Features
★ Non-standard configuration: can be custom-made according to customer requirements.
★ Variety of specifications: Can mix samples from 2-50 mL centrifuge tubes or reagent bottles.
★ Various functions: 12mm foam tube rack, tray stand; Up to 50 samples compatible with 15, 50 mL centrifuge tubes can be processed at the same time.
★Precise Control: PLC Precise Control, LCD Display Mixing Speed and Time;
★Microprocessor control: simple control panel, microprocessor precise control of mixing time and speed;
★High mixing efficiency: up to 2500 rpm, very good mixing effect;
★The whole machine is made of stainless steel and high-quality aluminum alloy, and the surface is painted with spray, and the whole machine is suitable for UV treatment and alcohol sterilization, and the treated equipment can be used in the clean room and ultra-clean stand, which is a small source of pollution, and it can meet the relevant environmental protection requirements of the bio-industry.
Order Details
Multi-tube vortexer; AC100~240V, 1.5A , Tube Holder*1 , Gasket*2 , Optional Accessories:
Model Description Number of holes Dimensions Specifications mm
D1 φ10mm Foam Tube Rack 50pcs 245 × 132 × 45
D2 φ12mm Foam Tube Rack 50pcs 245 × 132 × 45
D3 φ13mm Foam Tube Rack 50pcs 245 × 132 × 45
D4 φ16mm Foam Tube Rack (15ml Centrifuge Tube) 50pcs 245 × 132 × 45
D5 φ25mm Foam Tube Rack 15pcs 245 × 132 × 45
D6 φ29mm Foam Tube Rack (50ml Centrifuge Tubes) 15,245 × 132 × 45
D7 Replacement Pallet (Top & Bottom) / 305 × 178.5 × 25
★ Other multi-tube vortexers can be customized.
